Peco Fan Coil Thermostat TA155-046 with Cool-Heat-Off, 3 fan speeds
The TA155 manual changeover thermostat is designed for use in HVAC systems including two or four-pipe fan coil applications or other installations requiring manual switching between heating and cooling. Solid state accuracy offers comfort and efficiency while contemporary styling complements room décor.

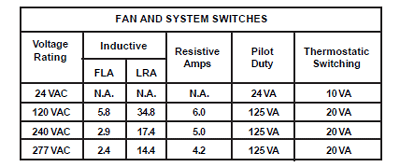

Advanced self-configuring circuitry allows the T155 electronic thermostat to be applied directly to input voltages from 24 to 277 VAC, 50 or 60Hz. Thermostat outputs are suitable for connection to relays, valves and similar pilot duty loads. The system and fan switches will handle inductive and resistive loads.
Solid State Precision and Dependability
Heat-Off-Cool System Switch
Multi-Speed Fan Switching Available
Accepts 24 to 277 VAC
Can be vertically or horizontally mounted (ships with vertical and horizonal mount covers)
Fan Coil Units
Setpoint - 50 to 90ºF / 10 to 32ºC
Dimensions - 2.8" W X 4.5" H X 1.1" D
Load Connections - Wire Leads
Mounting - Installs on standard 2" X 4" device box
Fan Operation: Continuous or cycled operation achievable with relays
Agency Approvals: UL, UL Canada, CE
