Today's kitchens have become much more than a place for cooking and food preparation. The kitchen is the heart of the home. It's the center of
activity for the entire family as well as the ideal place to congregate for informal entertaining. The Fantech range hood liner is a critical component to a quiet, efficient kitchen ventilation solution. The hood liner along with a Fantech fan and accessories can help keep the kitchen clear of smoke, grease, steam and odors.

Features:

• Heavy duty 22 gauge stainless steel construction
• Dimmable halogen lights (bulbs included)
• Variable speed control
• Removable aluminum filters
• Prewired for use with remote mount inline or exterior mount fans
• UL Approved
• For 8" Duct
• Fan and accessories sold separately

The hood liner is designed to install inside a custom hood enclosure and operates with a remotely mounted fan (purchased separately). You must provide support framing and backing in the areas in which you are securing the liner to in your custom canopy. Liners installed in custom canopies constructed of combustible materials, should be installed with the combustible material structure a minimum of 36” above the surface of the heating element. Liners installed in custom canopies constructed of non-combustible materials, should be installed with the non-combustible material structure a minimum of 30” above the surface of the heating element.

How to size your kitchen ventilation system:

Before choosing your kitchen ventilation fan - check with your local residential codes and range manufacturer's recommendations. Generally, for wall mount installations - 100 CFM's are recommended for each foot of cook-top width (3 feet = 300 CFM). For island installations - 150 CFM's are recommended for each foot of width.

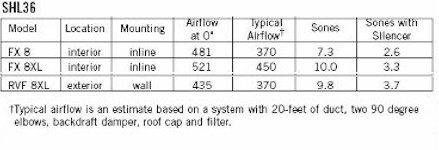

Recommended fans and specs

Recommended fans and specs
