Broan Model 503 Side Discharge Fan - 160 CFM, 5.0 Sones, Fits 3-1/4" x 10" rectangular duct.
Efficient, high-performance ventilation for a variety of wall or ceiling installations. Installs easily between ceiling joists or wall studs. Eliminate humidity from laundry rooms, tobacco smoke from rec rooms and workshops, or cooking fumes from kitchens with Broan's high-efficiency utility ventilators.
. Designed for large baths, utility rooms or laundry rooms.
. 160 CFM 5.0 Sones.

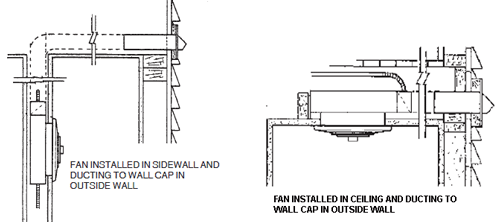

. Installs easily between ceiling joists or wall studs.
. Built-in damper prevents backdrafts.
. Fits 3-1/4" x 10" duct.
. One Year Warranty.
. Contemporary styled grille complements modern decor
. White polymeric grilles can be painted to match any decor
. Motor assembly offers fast, easy "twist-lock" installation
. Permanently lubricated, thermally protected, plug-in motor
. Specially designed fan blade stays in balance - will not distort
. Installs easily in walls or ceiling
. Steel housing 25 gage finished with rugged electricallybonded epoxy paint
. Built-in backdraft damper
. Fits 3¼" x 10" duct
. Adjustable mounting brackets span from 14" to 24"
Volts - 120
Amps - 1.5
RPM - 1725
Sones - 5.0
CFM - 160
Duct - 3¼" x 10"
