Aldes VentZone Register Terminal - Basic 6"


click to zoom
(8 more images)

Product
Our#:173846
Mfg:American Aldes
Mfg#:ZRT-1-6
Availability
1 Week To Ship
Price: $123.95
Suggested: $148.00
Quantity:
Shipping
Zip:

CLICK HERE TO WATCH OUR ZRT HOW-TO VIDEO

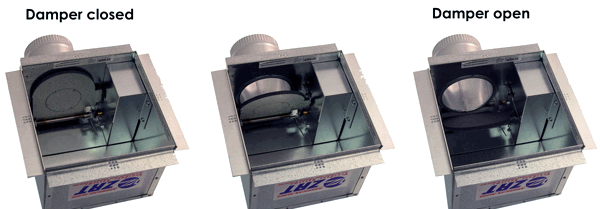

Aldes VentZone Register Terminal - Basic 6".  Provides basic on/off zoned ventilation via motorized damper (36 200).

This basic VentZone Register Terminal includes on/off damper and 4" mounting collar.  Continuous airflow regulators (CARs) can be purchased separately and inserted into the "neck" of unit to provide a constant, balanced rate of airflow.

Multi-area ventilation just got better!  The VentZone register terminal allows on-demand zoned ventilation of problem areas.  These energy-efficient systems eliminate unnecessary ventilation symptomatic of many popular remote fan installations, while increasing airflows where needed.  Perfectly suited for residential and commercial applications, VentZone systems combine demand controlled register terminals and multi-port inline exhaust fans.

How does it work?

Each VentZone terminal contains a primary flow damper that opens when called upon by a switch, timer, dehumidistat, or occupancy sensor.  Once the damper is opened - the VentZone terminal signals the fan to operate and only exhausts from the open VentZone terminal.    The ZRT series terminals can themselves activate fans used in smaller central exhaust ventilation systems. Through the use of an integral damper end-switch, the ZRT can trigger the remote fan to start. This provides the distinct advantage of allowing the fan to only ventilate specific spaces when called upon, again without the need for separate fans in each space. This is especially important in residential bath exhaust applications using popular in-line and multi-port fans, where extremely low noise and single exterior vent penetrations are desired.




Specifications:

Grille Dimensions -
 11-1/2" Square
Register Box Dimensions - 10" W X 10" L X 8-1/2" D
Duct Connection - 6" Diameter / 5-1/2" Long Neck
Mounting Brackets -  (2) 16" on center mounting brackets included - total bracket length - 17-3/4"
