Aldes 36" Kitchen Exhaust Package - HLS-36-KIT

These complete packages include all of the components needed to create a designer-quality kitchen ventilation solution.  These custom-crafted hood liners are meant to fit within existing wood or stucco hoods - or framed canopies.

Package Includes:

  • Standard Series 36" Hood Liner with Lights and Speed Control
  • A-8HP Inline Fan  - 470 CFM
  • Metal Backdraft Damper
  • (2) Vibration Isolation Clamps
  • 8" Metal Canister Sount Absorber

Highest quality materials
304 grade stainless steel - facia #4 brush finish
Heavy gauge galvanized steel body
Halogen lighting system with dimmer control
Motor speed control for remote fan
Commercial style removable, washable grease filters
Filters easy to clean, simply place in dishwasher

More about each package component:

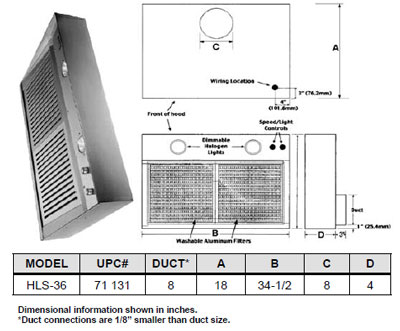

HLS-36 Hood Liner (71 131) - 34-1/2" W X 18" D X 4" H with centered 8" duct collar.  Liner includes wiring for 2 Halogen lights (not included) with dimmer controls and 5 Amp variable speed fan control.  Par 20 halogen lamps are available in many different styles and sizes at your local lighting supply store or hardware store
BDD8 Backdraft Damper (99 026) - keeps outdoor air from coming back into your kitchen.  Galvanized steel collar and lightweight aluminum damper blades. Spring loaded for positive closure.  Fits 8" Round Duct.
Inline Sound Muffler (94 634) - 24.5" L X 12.6" W - 8" Duct collars on each end.  For attenuation of fan noise propagated through ventilation ductwork. May be used in supply and exhaust ductwork
Vibration Isolation Clamps (99 162) - Intended to simplify fan installation and isolate fan vibration from rigid metal duct.  Two inch wide galvanized steel bands lined with 8mm neoprene pad. Can be used for suspended installation of fan. For use with rigid ductwork.
A-8HP Inline Fan (99 041) - The durable "A" fan's unique design, with a centrifugal blower in a straight-through housing, combines the compactness of an axial fan with the superior airflow and pressure  characteristics of centrifugal blowers. "A" fans may be mounted in any orientation. The fan housing is formed in heavy gauge galvanized steel and are sized to fit spiral duct directly without transition pieces.

Fan Specifications:
Max RPM  - 2950
Max Amps - 1.45
Rated Watts - 142
CFM  - 502 CFM at 0" Static Pressure / 470 CFM at .2" Static Pressure
