Aldes Electronic Push Button Timer - White OR Ivory


click to zoom
(4 more images)

Product
Our#:113552
Mfg:American Aldes
Mfg#:29 010
Availability
In Stock
Price: $36.24
Suggested: $59.95
Quantity:
Shipping
Zip:

Aldes Electronic Push Button Timer (29010) - White OR Ivory.  One white decora wallplate also included.

This easy-to-understand electronic timer switch allows for timed fan operation.

This electronic wall switch timer is suitable for motor loads such as whole house and bathroom exhaust fans, or lighting loads (including fluorescent).

Press the touchpad to select the amount of time you want the fan or lights to run. The timed settings that may be selected include 120, 60, 30, and 15 minutes, with the "off" button allowing the fan or lights to be manually turned off at any time.

There are 5 LED lights. The first will illuminate red when the device is "off", and green when it is "on". When "on" one of the other four will illuminate green to indicate the current run-time selection.

This wall switch may be used in single or multi-gang electrical boxes, and includes a white Decora style switch plate cover. The timer comes with both a white and an ivory color touchpad overlay. The switch has three-wires plus the ground wire (neutral wire required in switch box).

SPECIFICATIONS:
Electrical Requirements: 120 Volts AC, 60 Hz
Motor Load Rating: 1/3 HP (7.2A)
Lighting Load Rating: 500 watts
Approvals: UL(c), UL(us)
Packaging: Paperboard Box
Manufacturer Warranty: 1 year

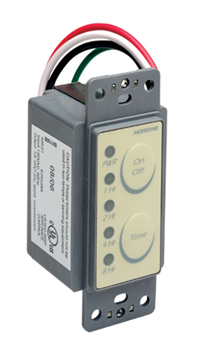

Pictured below with ivory overlay - switch includes white and ivory
