American Aldes HRV 200SRD - Heat Recovery Ventilator


click to zoom

Product
Our#:176247
Mfg:American Aldes
Mfg#:28 065
Availability
NO LONGER AVAILABLE
Shipping
Zip:

American Aldes HRV 200SRD - Heat Recovery Ventilator (28 065)

American ALDES Model HRV 200SRD - Heat Recovery Ventilator for homes up to 4,800 SF, recirculating defrost. The Heat Recovery System 200SRD provides a consistent supply of fresh air while lowering heating costs during the winter by transferring heat from the exhaust air to the fresh air stream. During the summer it also reduces the load on the air conditioner by lowering the temperature of the fresh outdoor air.

FEATURES:

  • Most Popular Aldes HRV
  • Includes recirculating defrost feature
  • Removable cross-flow aluminum core
  • Washable filters
  • Low voltage terminals for remote controls
  • Internal dehumidistat
  • Includes the ADXC-II digital control
  • Units carry a fifteen (15) year warranty on the hat recovery core and a two (2) year replacement parts warranty

More About the ADXC-II Digital Control:
Key Features
. 2 Speed Fan setting (Low-1/High-2)
. Standby setting (Fan speed 0)
. Electronic Dehumidistat
. Four Selectable Modes of Operation
20 min. ON / 40 min. off
20 min. ON / 40 min. recirculate
Continuous Ventilation
Continuous Circulation
. 20 / 40 /60 High Speed override button
. Instruction Card is inserted in the control
. Easy to read LCD Screen
. Slim-line design
. Connect to 3 wire 20 gauge low voltage wire

SPECIFICATIONS:

CFM - 223 at .2" SP
Max Temperature Recovery - 74%
Sensible Effectiveness @ 66 CFM / 32 Degrees F = 74%
Sensible Efficiency @ 66 CFM / 32 Degrees F = 64%
Sensible Efficiency @ 109 CFM / -13 Degrees F = 62%
Volts - 120
Watts / Low Speed - 87
Watts / High Speed - 164
Amps - 1.4
Weight - 75 lbs

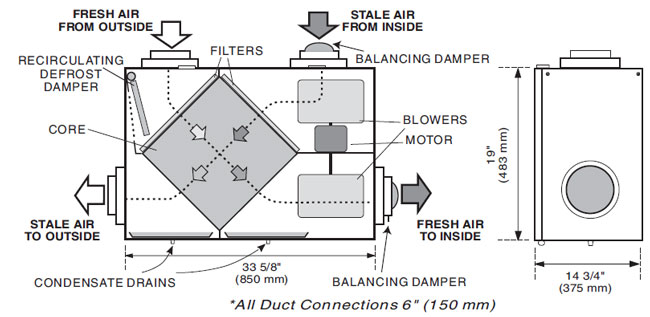

Dimensions: 33-5/8" W X 19" H X 14-3/4" D
