Ventergy IAQ-FSVS Duct Mount Continuous Supply System with MAX Airflow Regulator

click to zoom
(2 more images)

Mfg:American Aldes
Mfg#:25 263
No Longer Available

Ventergy IAQ-FSVS Duct Mount Continuous Supply System with Airflow Regulator- IAQ-FSVS-5

This System Includes:

 FSVS-100 Ventilator Fan
(1) Duct take-off with integral Continuous AIrflow Regulator - can be set for 75, 95, or 105 CFM
(1) 4" Exterior Wall Hood for Air Intake

The EnergyStar Rated Ventergy Series Filtering Supply Ventilator is designed to filter and deliver fresh air to the building or forced air-handling unit.  Its super low-energy motor is more efficient than relying on AHU Blowers for fresh air introduction.  It features a permanent, washable filter and a quiet continuous-duty external rotor motor with permanently sealed bearings, which provide many years of maintenance-free performance.  The FSVS is designed to filter and distribute incoming fresh air, and prevent the introduction of contaminants as a result of unwanted infiltration through leaks in the building's envelope. By
slightly pressurizing the structure, the FSVS also reduces the risk of backdrafting heating appliances, water heaters and fireplaces.

The included Constant Airflow Regulator (CAR) is a modulating orifice that automatically regulates airflows in duct systems to constant levels.  The passive control element responds to duct pressure, and requires no electric or pneumatic sensors or controls.

Locating and Installing the Fan:

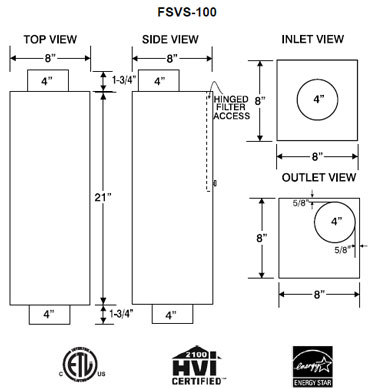

The compact dimensions and versatile mounting options permit installation above drop ceilings, between ceiling joists, or within a small soffi t location. The fan can be installed either horizontally or vertically.|

Nominal RPM - 3135
HP - .05
Volts - 120
Max Amps - .32
CFM at 0" Static Pressure - 120
CFM at .2" Static Pressure - 110
