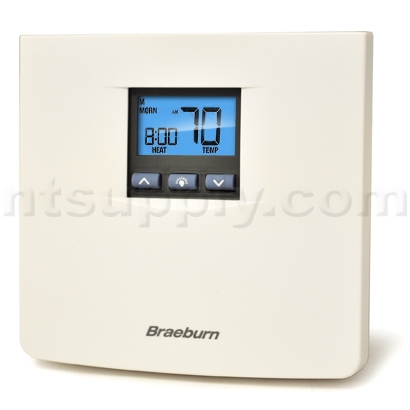

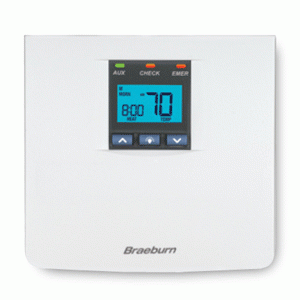

Braeburn Model 5200 2 Heat/2 Cool Programmable Multistage Thermostat image

(based on 4 ratings)
Read All Reviews
Brand: Braeburn
Located in: Multi-Stage Heat/Cool
Braeburn Model 5200 2 Heat/2 Cool Programmable Multistage Thermostat The digital programmable thermostat shall be a Braeburn®, model number 5200, 4.63" high x 5.00" wide x 1.25" deep, powered by 24 Volt AC with two "AA" Alkaline batteries (3.0 Volt DC) to retain clock settings and universal 7 or 5-2 day switch selectable programming. The thermostat shall be compatible with multi-stage heat pump systems with up to two stages of heating and two stages of cooling. The thermostat shall have a bright blue backlight display, front loading battery door, separate sub-base for trouble free installation and keypad lockout. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings, filter check monitor, adaptive recovery mode (ARMT), separate heating and cooling set point program times and temperatures, programmable recirculating fan mode, residual cooling fan delay, auxiliary heat fossil fuel switch, multi-colored LED status indicators and compressor power outage protection. A front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal or vertical junction box. FEATURES: . Universal 7 Day or 5-2 Day Programming . Large Display with Bright Blue Backlight . AC Powered with Battery Back-Up . Non-Volatile Memory to Maintain User Settings . Recirculating Fan Mode . Residual Cooling Fan Delay . Filter Check Monitor . Adaptive Recovery Mode (ARMT) . Adjustable 1st and 2nd Stage Temperature Differential . Auxiliary Heat Fossil Fuel Switch . ESD GuardT Electronic Circuitry . Compressor Short Cycle Protection . Compressor Power Outage Protection . AC Power Monitor . Separate Heating and Cooling Set Point Program Times and Temperatures . Temporary Program Override for 4 Hours or Until Next Set Point . Programmable Extended Hold Mode . Front Access Reset Button . F° / C° Switch . Gas / Electric Fan Switch . Mounts to Vertical or Horizontal Box . Easy Access Front Battery Door . Separate O & B Terminals . Multi-Colored LED Status Indicators . Keypad Lockout . Meets ENERGY STAR® and California Title 24 Guidelines SPECIFICATIONS: Dimensions: 4.63" x 5.00" x 1.25" Electric Rating: 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 3 amp total maximum load (all terminals) AC Power: 18-30 Volt AC DC Back-Up Power: 3.0 Volts DC (2 "AA" Alkaline batteries included) Compatibility: Multi-stage heat pump systems with up to two stages of heating and two stages of cooling Control Range: 45° to 90° F (7° to 32° C) Display Range: 40° to 99° F (4° to 37° C) Accuracy: +/- 1° F (+/- .5° C) Temperature Differential: 1st Stage - .5°, 1°, or 2° F (.25°, .5°, or 1° C) 2nd Stage - 2°, 3°, 4°, 5°, or 6° F (1°, 1.5°, 2°, 2.5°, or 3° C) Storage Temperature: 14° to 140° F (-10° to 60° C) Operating Humidity: 5% to 95% Relative Humidity Interchangeable Sub-Base: Braeburn 3200 Non-Programmable 2 Heat / 2 Cool Heat Pump Terminations: R, Y1, Y2, W2, E, G, O, B, L, C
More information for the Braeburn Model 5200 2 Heat/2 Cool Programmable Multistage Thermostat
Review Snapshot®
Avg. Customer Rating:

4.8 stars
(based on 4 reviews)
100% of respondents would recommend this to a friend.

Customers most agreed on the following attributes:

Pros:
Easy to adjust(3), Easy to install(3)
Best Uses:
Home(3)
Describe Yourself:
Homeowner(4)

Good stuff
By JyMVerified Purchaser from Deltona, Fl on 6/5/2010
Pros:
Easy To Adjust, Easy To Install
Best Uses:
Central Controls, Homes
Describe Yourself:
Homeowner
Bottom Line:
Yes, I would recommend this to a friend

Comments about Braeburn Braeburn Model 5200 2 Heat/2 Cool Programmable Multistage Thermostat:

Fair price!! Easy to follow installation direction. [...]


I would buy product again
By Rajan AlexVerified Purchaser from Canyon, TX on 4/7/2010
Pros:
Easy To Install
Describe Yourself:
Homeowner
Bottom Line:
Yes, I would recommend this to a friend

Comments about Braeburn Braeburn Model 5200 2 Heat/2 Cool Programmable Multistage Thermostat:

[...]

[1 of 1 customers found this review helpful]


Just what I needed, but....
By AllenVerified Purchaser from Chapin, SC on 4/13/2009
Pros:
Easy To Adjust, Intuitive Controls, Precise Controls
Cons:
Installation
Best Uses:
Homes
Describe Yourself:
Handyman, Homeowner
Bottom Line:
Yes, I would recommend this to a friend

Comments about Braeburn Braeburn Model 5200 2 Heat/2 Cool Programmable Multistage Thermostat:

I wanted a programmable thermostat to replace my Braeburn 3200. The 5200 description stated that this was interchangeable with the base of the 3200. So, I was looking forward to a plug in change taking a minute or so - not the case!

The 5200 manual stated I needed to change the base and rewire.

There is a reset button on the printed circuit board at the back. I found that this could be pressed by the wires coming out from the wall and make the display go blank, when plugging the thermostat into the base. Being an engineer, it didn't take long to work that one out, but it was a shame the reset buton is where it is.

Fortunately I had already labeled each wire from a previous, but failed, install of another brand of thermostat (that didn't work with my system as its sales flyer had stated!). That made the re-wiring much easier.

Overall, not such a simple "plug and play" 3200 to 5200 swap as I'd hoped.


The 5200, once installed, was easy to program and set up. It has some nice features such as a keypad lock and override. It has worked fine so far and is saving me money by not heating/cooling when I'm out!

Not for the novice to install, but a nice thermostat!

Service & Delivery comments:

Delivery was fast and the buying process simple

[2 of 2 customers found this review helpful]


great 7 day thermostat
By MarkVerified Purchaser from Warner Robins Ga. on 3/3/2009
Pros:
Easy To Adjust, Easy To Install, Intuitive Controls, Precise Controls
Best Uses:
Central Controls, Homes
Describe Yourself:
Homeowner
Bottom Line:
Yes, I would recommend this to a friend

Comments about Braeburn Braeburn Model 5200 2 Heat/2 Cool Programmable Multistage Thermostat:

[...] thermostat came ready to go. Easy to install...Only took 10 mins....
