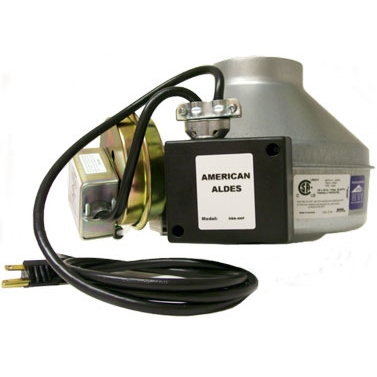

American Aldes DBA-4HP Dryer Booster Kit image

(based on 2 ratings)
Brand: American Aldes
Located in: Air Quaility, Bath & Exhaust Fans, Dryer Booster Fans
Aldes DBA-4HP Dryer Booster Kit The DBA-4HP fans is ideally suited for most residential dryer booster applications where duct runs exceed the lengths recommended by building code or the dryer manufacturer. Of a unique design, this fan allows lint to flow easily through them and compensate for system duct losses due to long duct runs or excessive bends. This results in shorter drying times, lower energy usage, and reduced wear on the dryer. The DBA-4HP model is equipped with an integral pressure sensing timer switch that automatically operates the booster fan whenever the dryer fan starts. Conversely, when the dryer operation stops, the switch will turn off the booster fan on a timed cycle. The kit is supplied with a 5-1/2 foot power cord and mounting bracket. Questions & Answers: Q. When is a dryer booster fan necessary? A. In residential applications, codes typically limit duct length to 14 or 15 feet and two 90° elbows (24-25 linear feet). If a duct run is longer than this, the dryer should in most cases have a booster fan. Q. What is the maximum length of duct for a standard DBA-4HP fan installation? A. 130 linear feet of 4" duct. Deduct 5 feet for each bend. Q. How important is the choice of exterior vents? A. An appropriate roof cap or wall hood is critical in dryer installations. The use of a good low pressure drop model maximizes a dryer's performance with or without a dryer booster fan. Note that building codes require exterior dryer vent caps to be equipped with a flapper type backdraft damper and prohibit screened openings that will be stopped up easily by lint. Q. Are Lint traps advisable? A. Yes, a lint trap is always recommended, especially in heavy-use situations. Lint traps will greatly reduce potential maintenance problems. Q. Is it possible to increase dryer performance and efficiency? A. Typical dryer blowers are inefficient in the presence of long duct runs. The resulting low airflows can cause motor overheating, nuisance cycling, and clogged ducts due to insufficient lint removal. The DBA-4HP Dryer Booster Fans provides the necessary airflows needed to prevent clogging, and assure shortened dryer operating times. Additional Specifications: 115 V / 60 Hz 69 Watts / .73 AMP 2800 RPM
Review Snapshot®
Avg. Customer Rating:

4.5 stars
(based on 2 reviews)

As Advertised
By SpiderVerified Purchaser from NY on 4/20/2011
Pros:
Easy To Install, Good tech help, Powerful, Quiet
Cons:
Instructions lame
Best Uses:
Basements
Describe Yourself:
Handyman, Homeowner
Bottom Line:
Yes, I would recommend this to a friend

Comments about American Aldes American Aldes DBA-4HP Dryer Booster Kit:

Instructions were a little hard to follow (setting it up on a vertical plane...), but the tech help was great. Also the way they have you mount the bracket almost insures that you will bend the casing enough to make it touch the blade and make it noisy. You then have to bend it out a little which was frustrating. But if i did another one I'd know what to do to avoid this: pre-drill the holes for the self tapping screws.
All in all a good product that helped my dryer work faster.


Completely Silent
By NyctinmanVerified Purchaser from Staten Island, NY on 3/29/2010
Pros:
Easy To Install, Powerful, Quiet
Describe Yourself:
Homeowner
Bottom Line:

Comments about American Aldes American Aldes DBA-4HP Dryer Booster Kit:

After installing I tested it to see how it sounded and thought it was not running. It is very quiet and smooth running and I am very satisfied.
