Brand:
Proliphix
Located in:
Accessories, Other

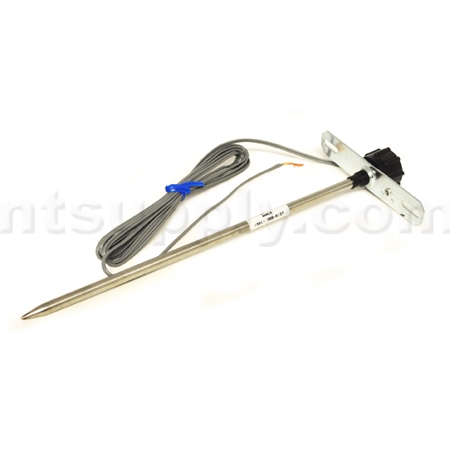

The Model PTS-D3 Precision Duct Thermister Sensor provides remote duct temperature sensing for the Proliphix NT20e and NT120e/h Network Thermostats. The active sensing element is a highly stable precision thermistor material accurate to within +/- .36oF (0.2oC). The sensing element is sealed with a thermally conductive compound in a versatile 9" (22.8cm) long 304 stainless steel tube attached to a 4" electrical strap. The slots in the mounting bracket form mounting ears for direct duct mounting and standard electrical boxes. The grommet on the tube fitting seals a 9/16" (1.43 cm) insertion hole. FEATURES Sensitive tip for precise measurements Waterproof probe 304 Stainless steel 9" probe Five-year warranty +/- .36oF (0.2oC) accuracy 25ft (7.37m) lead APPLICATION The PTS-D3 is designed for direct mounting on sheet metal duct systems. Where conduit is required, the duct sensor has a universal nylon mounting connector which adapts to a ½" knockout in a standard handibox. The nylon fitting has a ½" NPT female conduit fitting. The duct temperature sensor is waterproof and is point sensitive and comes with a 9" insertion depth. SPECIFICATIONS Sensing Element Thermistor (thermal resistor) Accuracy +/- .36oF (0.2oC) Temp Range -30oF to 160oF (34 to 71oC) Temp Response NTC -Thermistor Thermistor Stability 0.24oF (0.13oC) over 5 years Connection 25ft (7.37m) 24 AWG pigtails Mounting Directly to duct, wall or customer supplied back box, no adapters needed for standard boxes.
Best price on the web!
By Al
from Lawton, OK on 5/6/2011
from Lawton, OK on 5/6/2011
Pros:
Easy To Install
Best Uses:
Central Controls, Homes, Large Rooms, Offices
Describe Yourself:
Handyman, Homeowner, Professional
Bottom Line:
Yes, I would recommend this to a friend
Comments about Proliphix Proliphix PTS-D3 Precision Duct Thermal Sensor:
Wonderful for measuring supply air temperature near the handler. Works perfectly! Best price on the web. WILL definitely buy more!
