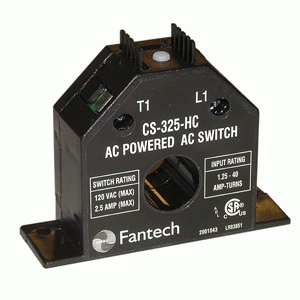

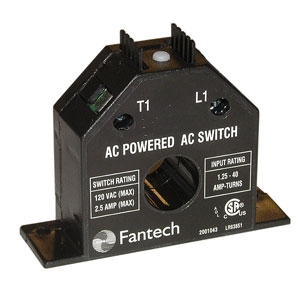

AC Currrent Sensing Fan Switch - ACCS 40 image

(based on 1 ratings)

Read All Reviews

Brand: Fantech

Located in: Accessories, Other

AC Currrent Sensing Fan Switch - ACCS 40. This 120 VAC switch can directly control AC loads (fans, relays, lamps) in response to the to the current of a monitored AC circuit. This can be used were a pressure switch is ineffective or impractical. Applications: Direct connection to PC's for general status, monitoring Directly control AC loads, such as relays, lamps or fans in response to the current of a monitored AC circuit Replaces differential pressure switches Safety and alarm circuits Monitor motors for broken belts or jammed tooling Heater monitoring SPECIFICATIONS: Input Range: 1.25 - 40 Amp Turns Max Amps - 2.5 Op. Temperature - 32 - 104 degrees F Trip Set Point -factory pre-set at approximately 1.25 amps Dimensions: 2.75" X 3.5" X 1.1" AC conductor hole - .75" diameter Switch rating: 120 VAC @ 2.5 Amps Max

More information for the AC Currrent Sensing Fan Switch - ACCS 40

Review Snapshot®

Avg. Customer Rating:

5 stars

(based on 1 review)

[1 of 1 customers found this review helpful]

Excellent product and esay to install.

By Peter

from New Jersey on 4/21/2009

Pros:

Easy To Install, Intuitive Controls

Best Uses:

Homes

Describe Yourself:

Professional

Bottom Line:

Yes, I would recommend this to a friend

Comments about Fantech AC Currrent Sensing Fan Switch - ACCS 40:

I needed to install a booster exhaust fan for my clothes dryer. The pipe exceeded the length allowed by fire code. Not knowing this product existed, I was about to design an electronic control panel to turn on/off the fan simultaneously with the dryer. Needless to say, when I looked in the internet and found this switch I was very relieved. It works just as a clamp-on ammeter, sensing voltage going through the hole in the switch. Even though the first one I received was defective, the company sent back a new one immediately. Very easy to install. and it works very well. I would certainly recommend this product and especially the excellent customer service of iaqsource.com.
