(based on 1 ratings)

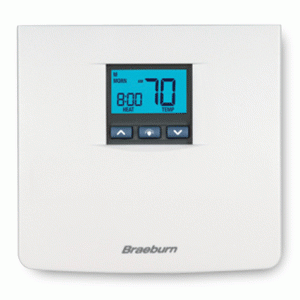

Braeburn Model 5000 Digital Programmable Thermostat - 1 Heat / 1 Cool FEATURES: • 5-2 Day Separate Weekday / Weekend Programming • Large Display with Bright Blue Backlight • Battery Powered with Latching Relay Output • Non-Volatile Memory to Maintain User Settings • Recirculating Fan Mode • Residual Cooling Fan Delay • Filter Check Monitor • Adaptive Recovery Mode (ARM™) • Adjustable Temperature Differential • ESD Guard™ Electronic Circuitry • Low Temperature “Freeze” Protection • Compressor Short Cycle Protection • Separate Heating and Cooling Set Point Program Times and Temperatures • Temporary Program Override for 4 Hours or Until Next Set Point • Programmable Extended Hold Mode • Front Access Reset Button • F° / C° Switch • Gas / Electric Fan Switch • Mounts to Vertical or Horizontal Box • Easy Access Front Battery Door • Separate O & B Terminals • Keypad Lockout • Meets ENERGY STAR® and California Title 24 Guidelines SPECIFICATIONS: Dimensions: 4.63” x 5.00” x 1.25” Electric Rating: 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 2 amp total maximum load (all terminals) DC Power: 3.0 Volts DC (2 “AA” Alkaline batteries included) Compatibility: Single stage gas, oil or electric systems Single stage heat pump systems 250mv – 750mv millivolt heating systems Control Range: 45° to 90° F (7° to 32° C) Display Range: 40° to 99° F (4° to 37° C) Accuracy: +/- 1° F (+/- .5° C) Temperature Differential: .5°, 1°, or 2° F (.25°, .5°, or 1° C) Storage Temperature: 14° to 140° F (-10° to 60° C) Operating Humidity: 5% to 95% Relative Humidity Interchangeable Sub-Base: Braeburn 3000 Non-Programmable and 5050 Programmable 1 Heat / 1 Cool Terminations: Rc, Rh, G, W, Y, B, O
